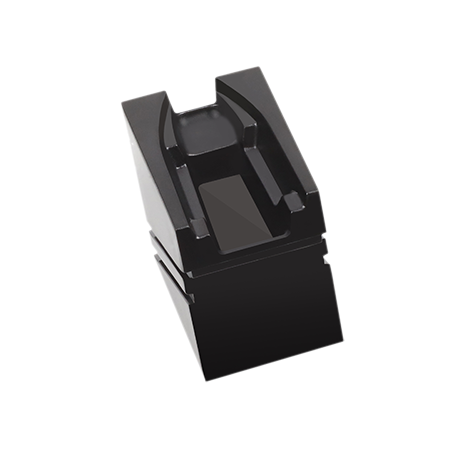

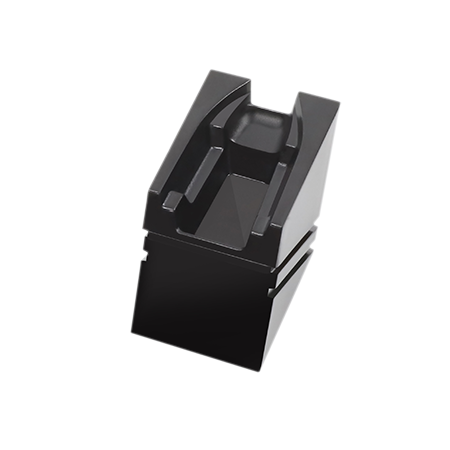

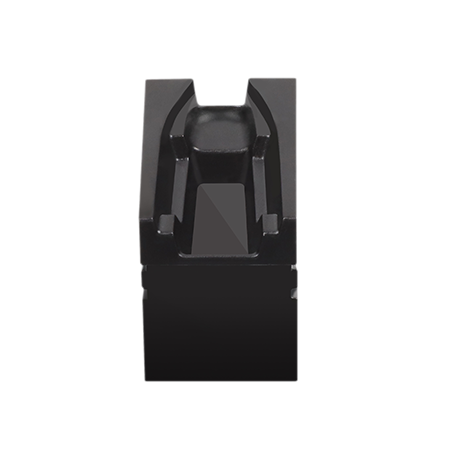

Finger Vein Controller

XG-V7

XG-V7 finger vein recognition module is a product designed for smart locks, security cabinets and small mobile terminals. The appearance size and hardware interface of the module are more compatible with the existing fingerprint module, and the user development is more efficient and convenient. It is the smallest finger vein module available in the market. The module is designed with low power consumption, and the standby power consumption is as low as 3uA.

Overview

The SOC of XG-V7 is a high cost performance 32-bit microprocessor, which is customized by XGZX for finger vein series modules. It has high performance DSP computing ability, the core adopts SCM architecture, the typical working frequency of SOC is 128MHZ, and the operation speed of 100 ID / 300 template can be fast in 1S. SOC has rich peripheral interfaces, such as USB2.0 device, full duplex UART, PWM voice output, etc. SOC also has low power consumption, high stability, high cost performance and other characteristics, which is very suitable for the secondary development of smart locks, safe, small mobile terminals and other products.

Parameter

Identification method	1：N/1：1 comparison
Recognition speed	＜1 second
Communication interface	USB2.0、UART
Working voltage	DC 5.0V（±5%）or DC 3.3V (±5%)
Working current	＜120mA/5V or＜180mA/3.3V
Standby current	＜2uA
Power management mode	capacitor induction power on, system startup time <100mS
Working environment	temperature：-20℃～60℃ humidity：20%～80%RH

Features

? Product Features:

● XG-C6S5, a high-performance 32-bit microprocessor customized by XGZX for finger vein series modules, unique and professional;

● Finger vein module realized by single-chip microcomputer platform for domestic exclusive application;

● Advantages of single chip microcomputer platform: simple hardware, fast power-on speed, high efficiency, low power consumption, high integration, small size, and never crash;

● The exclusive USB mode in China adopts a virtual optical drive design, no need to install a driver, convenient operation and better compatibility.

? Function extension:

● Full duplex serial port TTL level supports extended SPI mode

● Support extended PWM voice output

? Industrial design:

● Adopt dust-proof and waterproof design, IP65 protection grade

● The camera lens is designed with multi-mode, multi-layer and high transparent glass, which can effectively suppress distortion and stray light interference

? Product applications:

● Smart bullet cabinet, smart locks, safe, small mobile terminals and other products.
