  • Finger Vein Collector
    XG-C500
    XG-C500 finger vein collector refers to a data acquisition terminal extended on XG-V5. XG-C500 has rich communication interfaces and is compatible with multi system cross platform applications. The collected data is compatible with the existing XG-V5, and can be shared between the server and the terminal, single machine and multi machines users. It provides multilingual SDK, support domestic independent systems such as Shenwei, Longxin, Feiteng, Kirin, Huawei Hisilicon, etc., to meet the development needs of users in various industries.

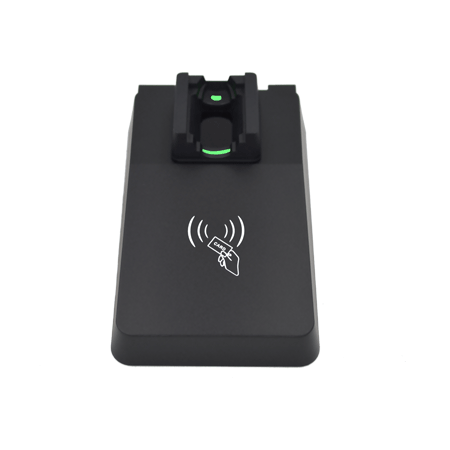

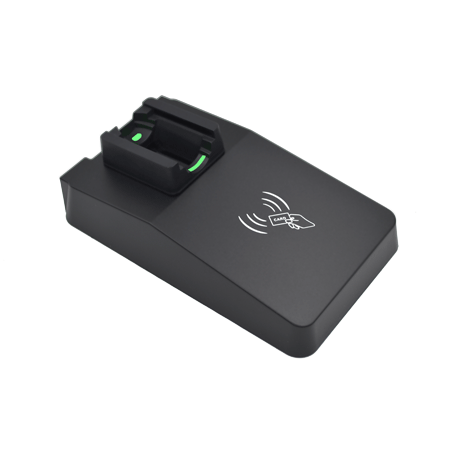

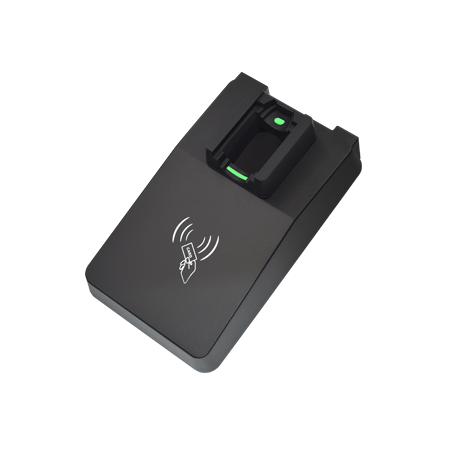

    Finger Vein Collector XG-C500
    Overview
    XG-C500 CPU adopts a high-performance 32-bit SCM controller based on ARM Cortex-M series core of Synochip. The CPU adopts 144MHZ main frequency, supports 2 UART, 1 USB2.0 and 1 optical CMOS sensor interface. It can expand various communication and control ports such as wired network, wireless WiFi, Bluetooth, etc. Finger vein collector can be used in identity authorization authentication, login device, social insurance, examination, payment system, dongle, etc.
    Parameter

      Identification method

      finger vein、IC card/ID card

      Recognition speed

      <1 second

      Communication interface

      USB2.0, wired network, WIFI, Bluetooth

      Support platform

      Windows、Linux、Android、IOS etc.

      Supporting languages

      C#、VB、OCX、JAVA

      Working voltage

      DC 5.0V(±5%)

      Working current

      <120mA/5V

      Standby current

      <30mA/5V

      Working environment

      temperature:-20℃~60℃      humidity:20%~80%RH


    Features

    ?  Product features:

    ● SCM system, safer and more reliable

    ●Exclusive dual breathing lamp hardware design, bilateral light source open structure

    ●Support backstage database and networking verification

    ● Support drive free USB, making installation and use more convenient

    ● Support real voice, wired network, swipe card

    ● Support extended peripheral control, WiFi, Bluetooth, ID card reading

    ● Multi Platform SDK, support domestic independent systems such as Shenwei, Longxin, Feiteng, Kirin, Huawei Hisilicon, etc.


    ? Function extension:

    ● Network, Bluetooth can be extended


    ?  Industrial Design:

    ● The acquisition window adopts open type design, which makes the user experience the product more intuitively, convenient for cleaning and daily maintenance

    ●The camera lens is designed with multi-mode, multi-layer and high transparent glass, which can effectively suppress distortion and stray light interference

    ● IP42 protection level


    ?  Product application:

    ● Identity authorization authentication, login device, social insurance, examination, payment system, dongle
